27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath

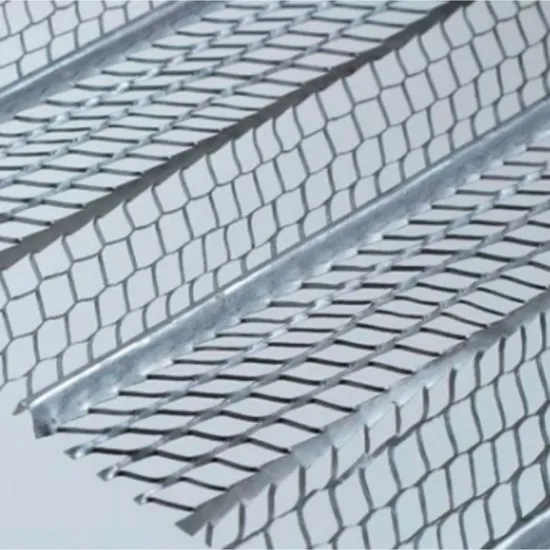

Rib lath is a kind of metal lath used extensively in the construction industry. It consists of metal strips arranged into a mesh, with additional longitudinal ribs for enhanced mechanical keying.

DOWNLOAD TO PDF

Details

Tags

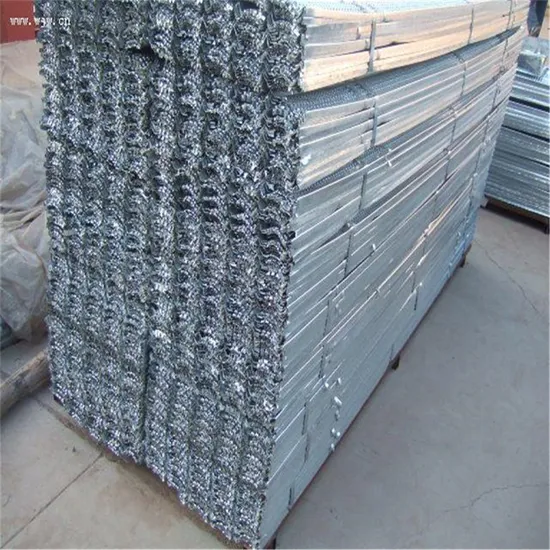

Rib lath is a kind of metal lath used extensively in the construction industry. It consists of metal strips arranged into a mesh, with additional longitudinal ribs for enhanced mechanical keying. Rib lath provides a sturdy base for plastering or rendering on masonry or poured concrete. Its primary functions are to reinforce, provide formwork support, and maintain the structural integrity of building structures. Rib lath aids in preventing wall cracking and peeling, enhances the adhesion of plaster, and helps maintain the structure's shape and stability.


Usage: building, construction.
Thickness: 0.30mm-0.50mm

Rib Height:15-20mm
Width: 445mm

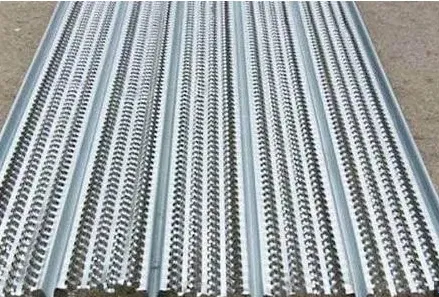

27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath
Product Description



7 Rib 8 Opening
Thickness(mm)   Weight(KG) Width x Length(mm)
0.30 100 1.79 610x2440
0.35 100 2.09 610x2440
0.40 100 2.38 610x2440
0.45 100 2.68 610x2440
0.50 100 2.98 610x2440
5 Rib 8 Opening
0.30 150 1.31 610x2440
0.35 150 1.53 610x2440
0.40 150 1.75 610x2440
0.45 150 1.96 610x2440
0.50 150 2.17 610x2440
9 Rib 4 Opening
0.30 75 1.89 610x2440
0.35 75 2.28 610x2440
0.40 75 2.53 610x2440
0.45 75 2.84 610x2440
0.50 75 3.15 610x2440

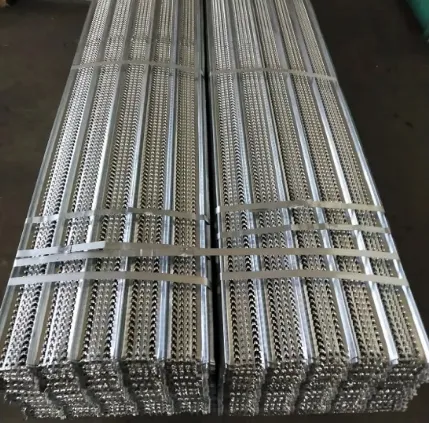

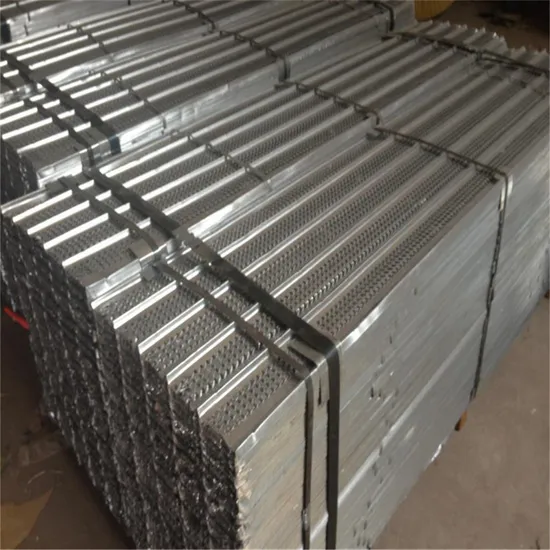

High rib lath has excellent engineering quality and construction security. It is widely used in construction reinforcement of tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern as concrete permanent assembly-free formwork lath.
27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath

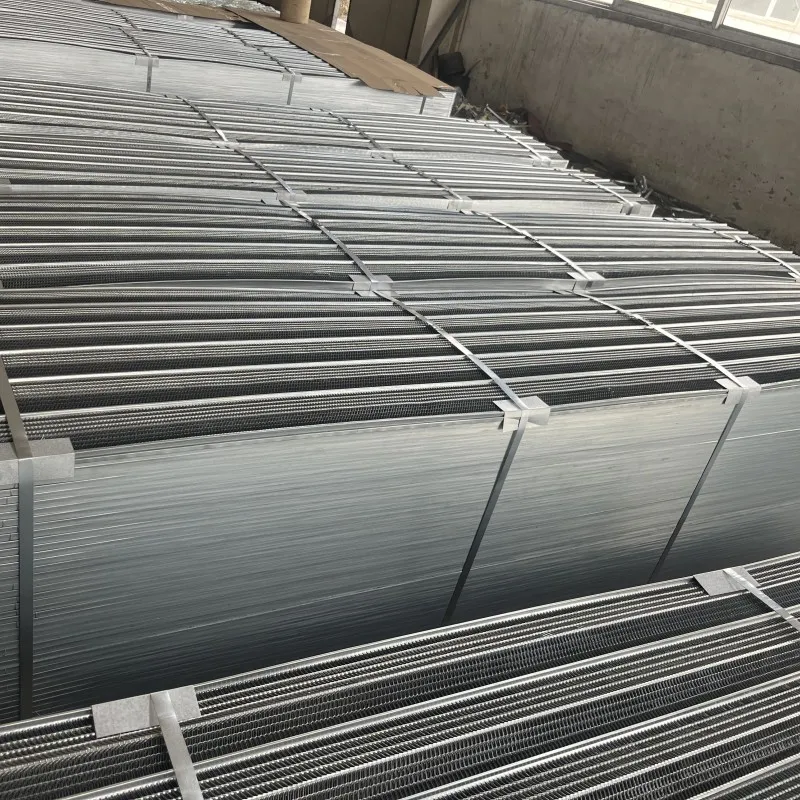

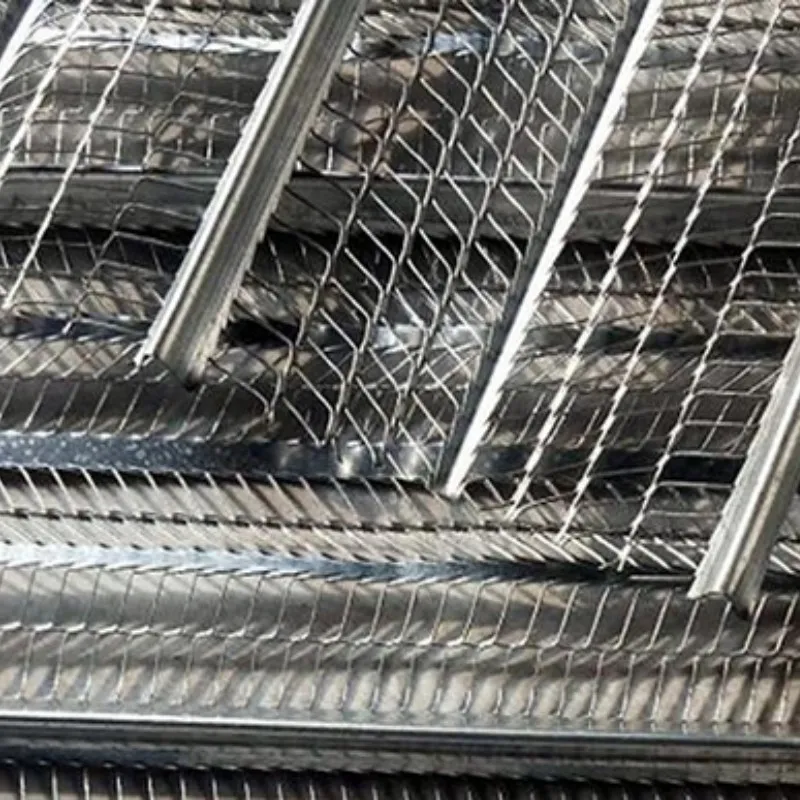

HY RIB LATH SPECIFICATION:
Name Expanded Metal High Rib Lath
Material Hot galvanized
rib Mesh Lath ( Specifications and sizes can be customized.)
Thickness (mm) Weight (kg) Width (mm) Length (mm) Rib Height (mm) Rib Distance (mm)
0.21 1.7 450 2200 14-20 90
0.23 1.9 450 2200 14-20 90
0.3 2.48 450 2200 14-20 90
0.35 2.9 450 2200 14-20 90
0.4 3.3 450 2200 14-20 90
0.45 3.7 450 2200 14-20 90
0.5 4.1 450 2200 14-20 90
27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath27"X96" Diamond Galvanized Flat Rib Expanded Metal Lath for Wall Plaster Building Material 2.5lbs Stucco Wall Lath
FAQ

1. Is your samples free?
Yes, we can provide free samples to my clients.

2. How many days will the samples be finished?
Generally the samples will be sent immediately by the air express in 2~3 days if the goods are in stock.

3. And how about the mass production?
Normally within 20-25 days according to your order.

4. Are you a manufacture?
Yes, we have been in providing the products in this field for 15 years.

5. Is customized available?
Yes, we can OEM according to your detailed drawings.
