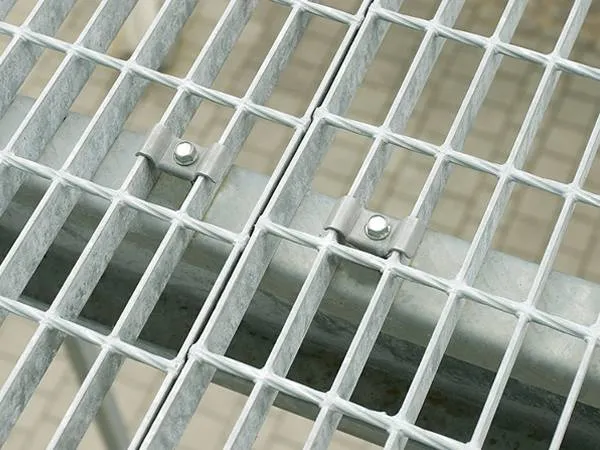

Proper Installation Methods for Aluminum Floor Grating

Industrial and commercial facilities increasingly rely on aluminum floor grating for its exceptional strength-to-weight ratio, corrosion resistance, and low maintenance requirements. Whether used as aluminum walkway grating, aluminum grate flooring, or aluminum catwalk grating, proper installation is paramount to ensure safety, longevity, and optimal performance. As a leading manufacturer supplying these products in large quantities, we emphasize that correct installation techniques are as crucial as the quality of the grating itself. This guide outlines the essential methods for installing various forms of aluminum grating securely and effectively.

Key Installation Methods for Aluminum Walkway Grating

Aluminum walkway grating is commonly installed using bearing bars running perpendicular to the direction of travel. Key installation steps include:

1. Support Verification:Ensure supporting structures (like steel I-beams) have adequate bearing surface (typically min. 1.5 inches) and are spaced correctly per the grating load table.
2. Panel Placement:Carefully lower panels onto supports. Align panels accurately with adjacent panels and the structure. Temporary tack welding or clamps can hold alignment.
3. Fixing Methods:The primary method is welding:Use compatible aluminum filler wire. Weld at each bearing point where the grating rests on the support. Minimum weld size is typically 1/4 inch (6mm) fillet weld on each side of the bearing bar. Avoid excessive heat input to prevent distortion. Clip angles or perimeter framing are often welded first, and then the grating is welded to these.

Alignment and Gaps: Maintain consistent gaps (typically 1/8" to 1/4") between panels and at perimeters for thermal expansion. Ensure surfaces are flush; shimming may be required on uneven supports.

Secure Techniques for Aluminum Grate Flooring

Aluminum grate flooring, often used in platforms or larger floor areas, follows similar principles but requires careful attention to larger expanses:

1. Layout Strategy:Plan the panel layout starting from a fixed point (e.g., a building column), working outwards to minimize cutting. Account for expansion gaps.
2. Support Structure:Verify the underlying structure (grating bearers, joists, or frames) is robust, level, and correctly spaced. Perimeter framing (angle or channel) is typically welded or bolted in place first.
3. Panel Installation:Place panels within the frame or onto bearers. Ensure bearing is full and even across all supports.
4. Expansion Management:Crucial for large areas. Incorporate expansion joints or ensure adequate gap width (consult engineering specs) around the perimeter and between large panel groups. Never rigidly fix grating in a way that prevents thermal movement.
5.

Optimizing Aluminum Floor Grating Installations

General best practices apply to all aluminum floor grating installations:

1. Directionality:Install panels with bearing bars spanning the shortest distance between supports for maximum strength. The direction of the serrated surface (if present) should align with the primary direction of travel for slip resistance.
2. Cutting:When cutting panels is unavoidable, use appropriate tools (carbide-tipped blades, saws designed for aluminum). Cut only bearing bars, never just cross rods. File sharp edges smooth and remove burrs thoroughly. Avoid cutting near support points if possible.
3. Surface Protection:Remove weld spatter immediately using a stainless steel brush (dedicated to aluminum use only to prevent contamination). Clean the grating surface after installation to remove dirt, oils, or markings.
4. Loading:Do not subject the grating to full design loads until all welding is complete and the structure is fully secured. Avoid point loading during construction.
5.

FAQs about Aluminum Catwalk Grating Installation

What are the maximum span capabilities for aluminum catwalk grating?

Maximum spans are determined by the specific aluminum floor grating type and the required load rating. Always refer to the manufacturer's published load tables for the exact product being installed. Span capabilities vary significantly based on these factors.

How critical is thermal expansion management for aluminum grate flooring?

Very critical. Aluminum has a relatively high coefficient of thermal expansion. Failure to provide adequate perimeter gaps (typically 1/4" per 10 feet of length, but consult specs) or expansion joints in large installations can lead to buckling, distortion, or damage to the grating or supporting structure, especially in environments with significant temperature fluctuations.

Can aluminum walkway grating be installed directly onto concrete?

Yes, but it requires specific methods. Common techniques include:Using concrete anchors (stainless steel or galvanized) with suitable hold-down fixtures or perimeter frames bolted to the concrete. The concrete must have adequate strength and the anchors correctly installed to handle pull-out and shear forces. A leveling grout bed might be necessary.

What type of welding is recommended for securing aluminum catwalk grating?

Gas Metal Arc Welding (GMAW or MIG) using an inert gas shield (typically 100% Argon) is the most common and efficient method for field welding aluminum grating. Use a filler wire compatible with the base aluminum alloy (commonly 4043 or 5356). Ensure welders are qualified for aluminum welding, as technique differs significantly from steel.

How should aluminum floor grating be maintained after installation?

Aluminum grate flooring is exceptionally low maintenance due to its corrosion resistance. Routine cleaning with water and mild detergent is usually sufficient to remove dirt, debris, or light oils. Avoid harsh alkaline or acidic cleaners. Periodically inspect welds, connections, and the overall condition, especially in high-traffic or corrosive environments. Promptly address any damage or excessive wear.

Proper installation of aluminum floor grating – encompassing aluminum walkway grating, aluminum grate flooring, and aluminum catwalk grating – is fundamental to realizing its full benefits of safety, durability, and longevity. Success hinges on meticulous pre-installation planning, adherence to engineering specifications and load tables, correct handling, precise alignment, and the application of appropriate fixing methods, primarily welding or specialized clips/bolting. Crucially, allowing for thermal expansion is non-negotiable. By following these manufacturer-recommended procedures, facilities can ensure their aluminum grating installations provide safe, reliable, and long-lasting performance in demanding industrial and commercial settings. As a bulk supplier, we emphasize that investing time and care in correct installation protects both personnel and the significant investment in high-quality aluminum grating products.
