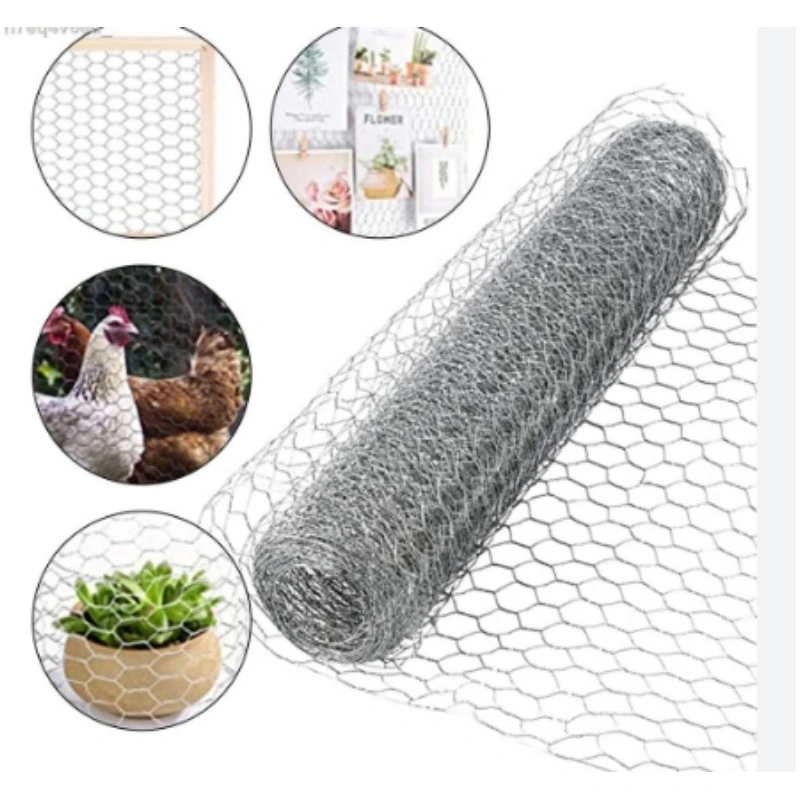

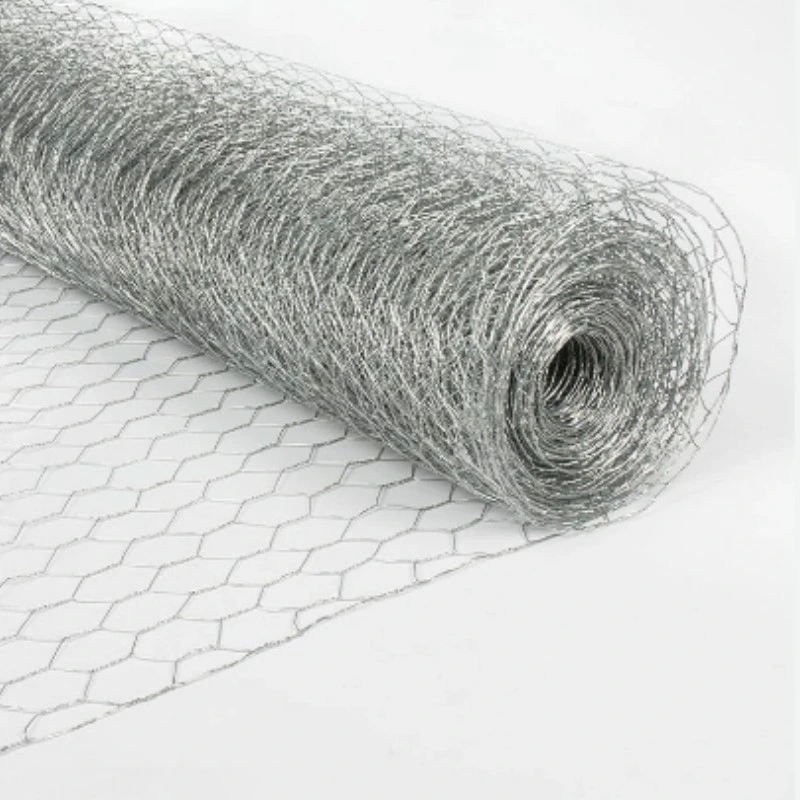

Twisted mesh is also called hexagonal mesh, also known as soft edge mesh. Twisted mesh is a wire mesh made of angular mesh (hexagonal) woven with metal wires. The diameter of the metal wire used varies according to the size of the hexagon.
Application
Reinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;
Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.

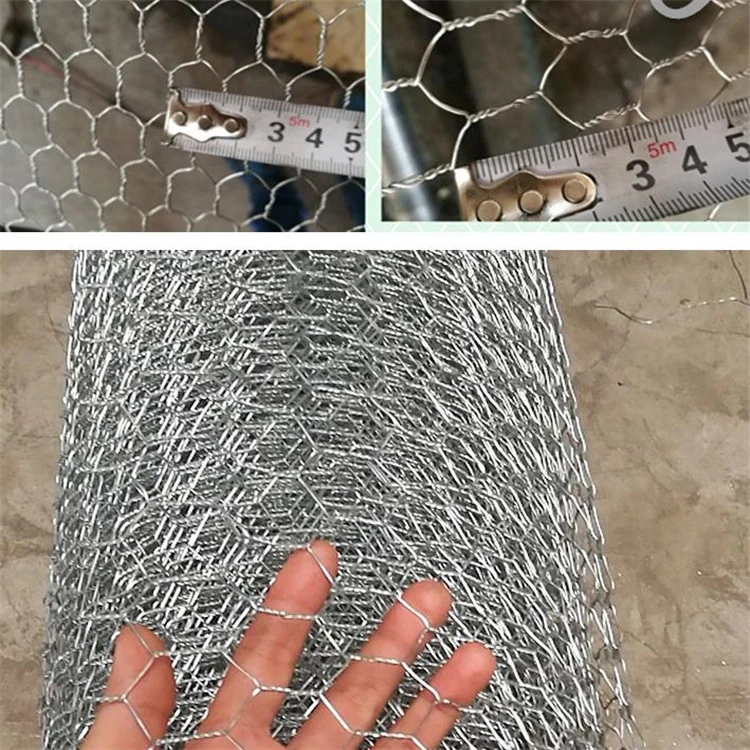

Specification of hexagonal wire netting | ||||||
Specifications | Wire Diameter | Width | ||||
Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |

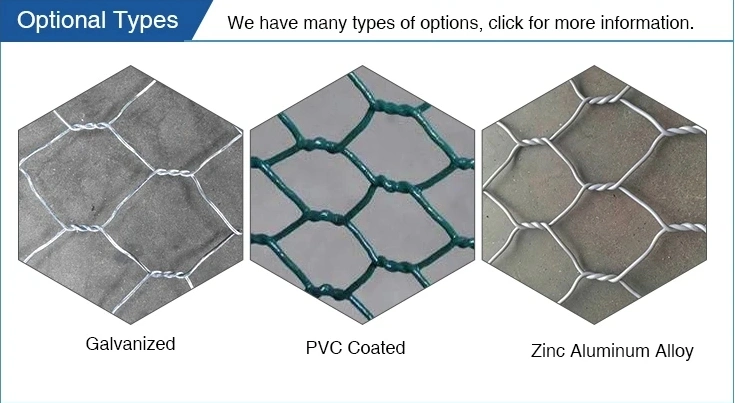

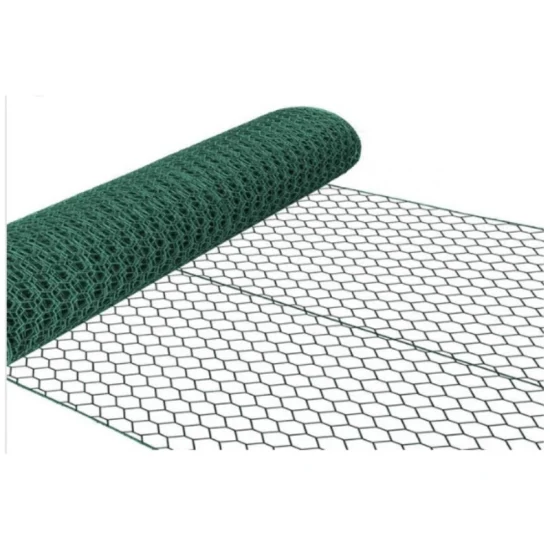

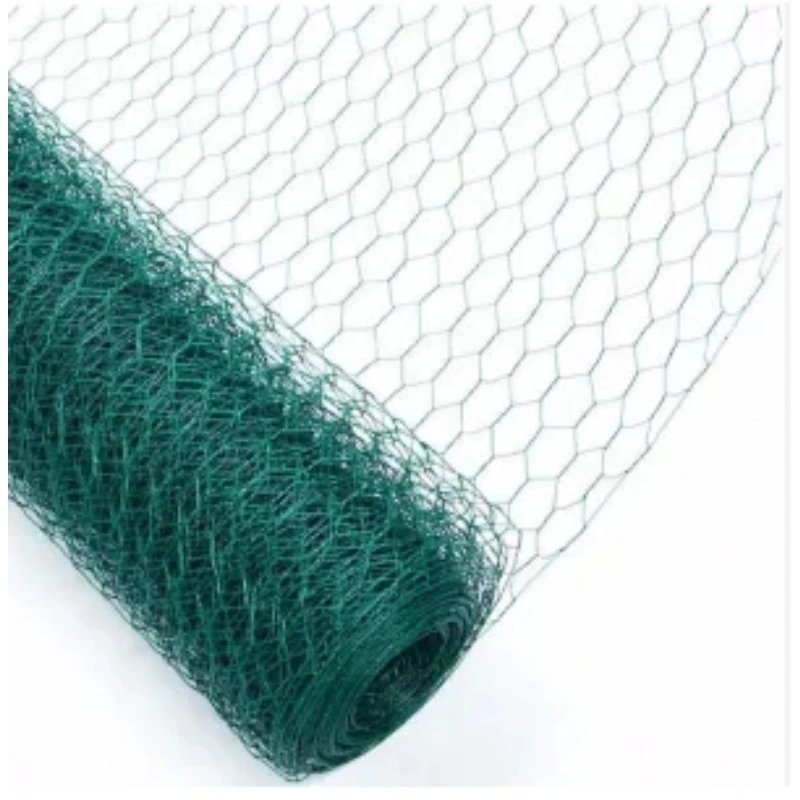

PVC Coated Hexagonal Wire Netting
|
|||
Mesh |
Width |
||
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |








1. Is your samples free?
Yes, we can provide free samples to my clients.
2. How many days will the samples be finished?
Generally the samples will be sent immediately by the air express in 2~3 days if the goods are in stock.
3. And how about the mass production?
Normally within 20-25 days according to your order.
4. Are you a manufacture?
Yes, we have been in providing the products in this field for 15 years.
5. Is customized available?
Yes, we can OEM according to your detailed drawings.
