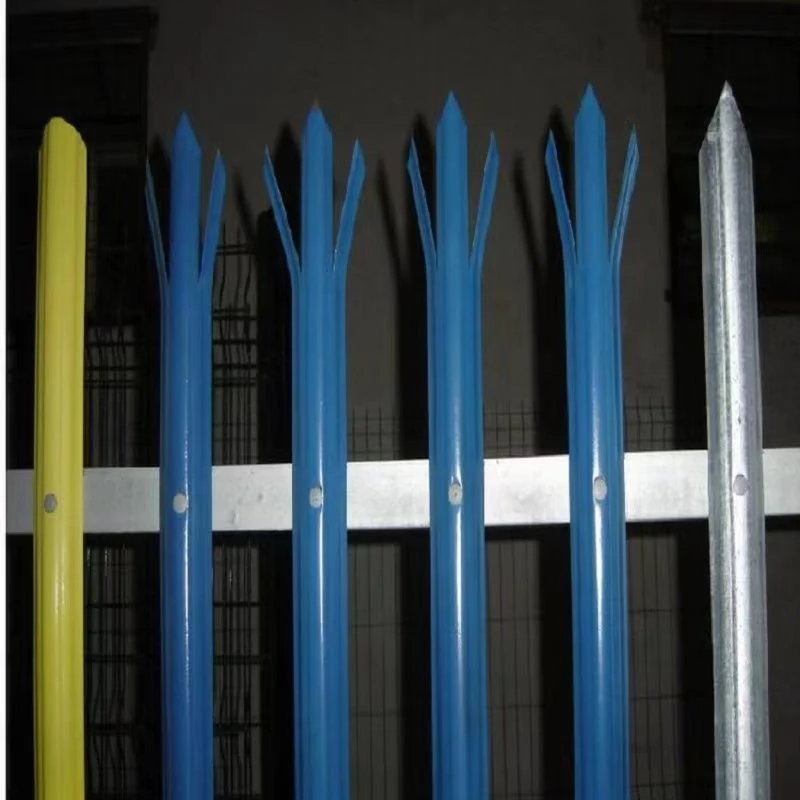

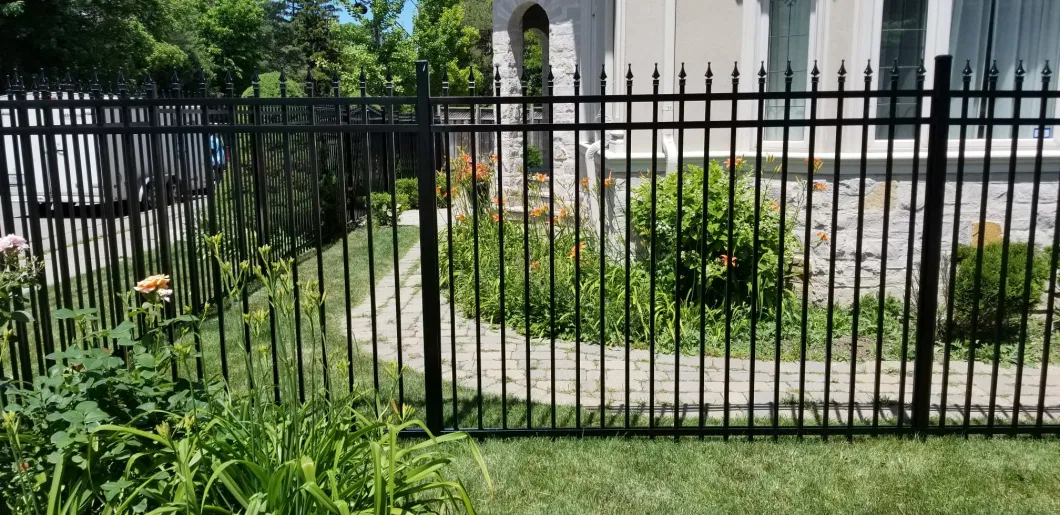

Picket fence, it is one of the fence series, this fencing was first applied to the United Kingdom, and now has been widely used at home and abroad. It replaces the original brick wall and some crude guardrail net, so that your living environment is simple, bright and fresh. Its wide application stems from people's pursuit of the environment, the publicity of personal cleanliness, and the advocation of exotics. Picket guardrail is loved and used by people because of its beautiful structure and different styles.
Product features:
High strength, good rigidity, safe and stable, durable, good anti-corrosion performance, anti-aging, beautiful structure, wide vision, low price, diverse colors, different styles, easy and quick installation.
Material:
High quality steel plate, hot plated aluminum zinc color steel plate, cold rolled steel, hot rolled steel.
Manufacturing process and surface treatment: stamping, hot plating, spray, PVC anti-corrosion treatment.
Purpose:
Fencing, decoration, protection and other facilities for villa, residence, garage, industry, agriculture, municipal, school, lawn, garden road, traffic and other industries.
Classification: Picket fence is divided into D-type fence and W-type fence according to the shape of the fencing cross-section.
D-type Fence
Thickness of D-type fence:
3.00mm for general application purposes;
3.50mm for safety application purposes;
4.00mm for special applications.

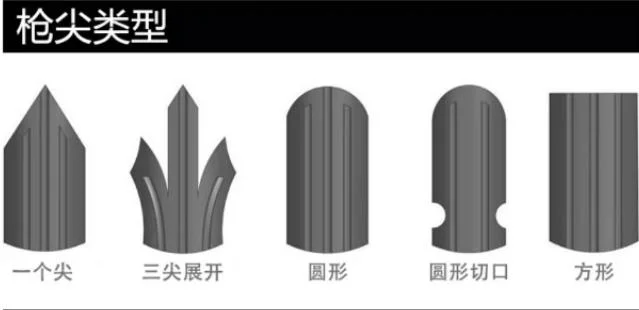

Head shape:
1. Square head

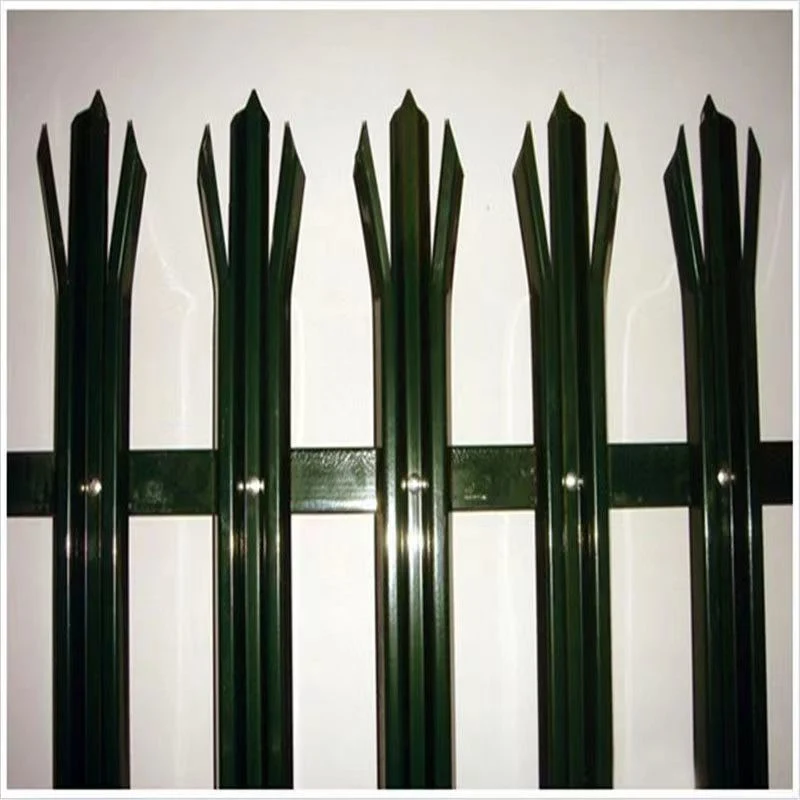

2.Three pointed head
3. Single pointed head
4. Round head
5. Round head with notch
Height: 2.75m
Width: 1.8m-2.35m

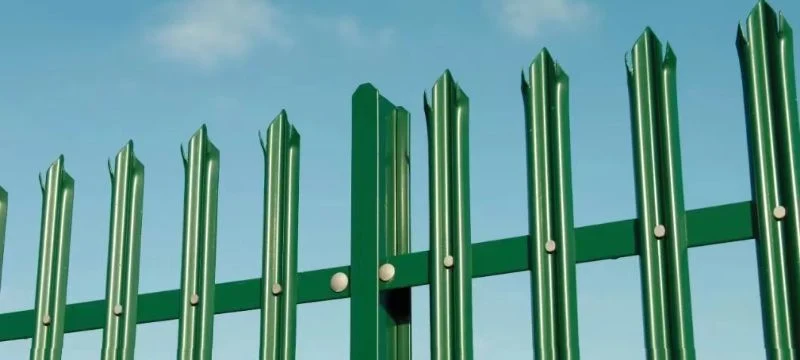

W shaped fence
W-type guardrail can be used thickness:
2.00mm for general application purposes;
2.50mm for safety application purposes;
3.00mm for special applications.
Head shape:
1, three pointed head 2, single pointed head 3, round head 4, round head with notch.
Height: 2.750m
Width: 1.8m-2.35m

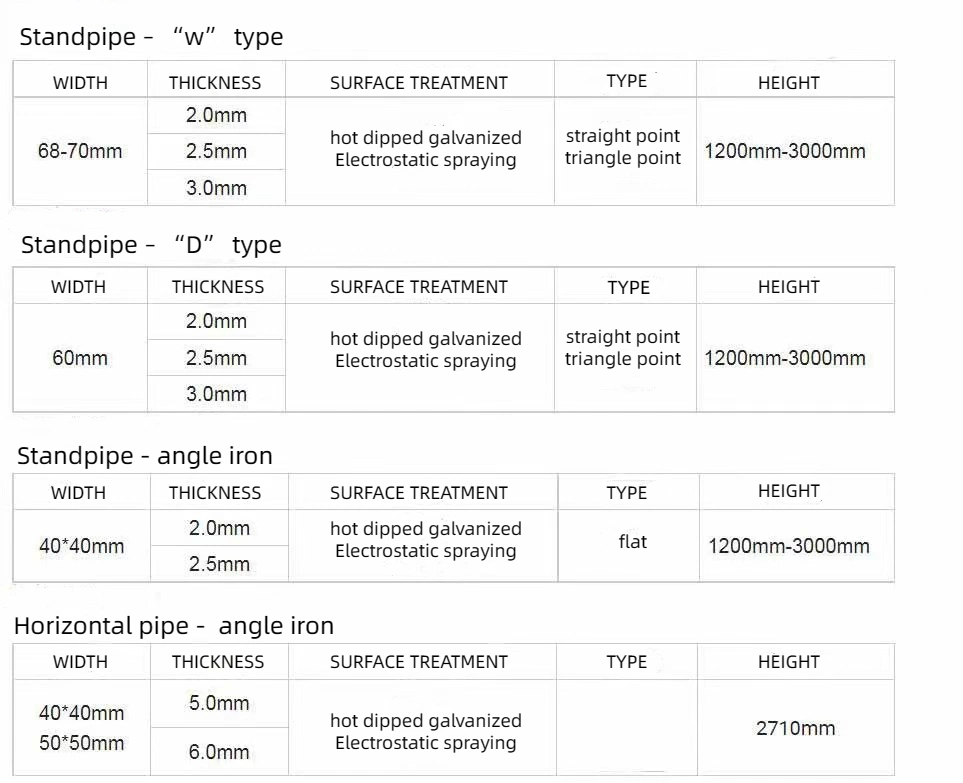

Picket fence basic specifications:
1. Picket fence consists of 17 low carbon steel pieces with "D" or "W" picket tops.
2.Picket fence in use, often use the standard width of 2.75m guardrail, the guardrail is easy to install.
3. Fixing nuts and bolts: 8mm.
Standard height | Thickness |
1.2m | 3.0mm "D" |
1.5m | 3.0mm "D" |
1.8m | 3.0mm "D" |
1.8m | 3.0mm "D" |
1.8m | 2.0mm "W" |
2.0m | 2.0mm "D" |
2.0m | 3.0mm "D" |
2.0m | 2.0mm "W" |
2.1m | 3.0mm "D" |
2.1m | 2.0mm "W" |
2.4m | 2.0mm "D" |
2.4m | 3.0mm "D" |
2.4m | 2.0mm "W" |
2.4m | 2.5mm "W" |
3.0m | 3.0mm "D" |
W, D type fence height | 1m-6m |
Fence width | 1m-3m |
Panel height | 0.5m-6m |
Panel width | W pale 65-80mm D pale 60-70mm |
Panel thickness | 1.5-3.5mm |
Beam Size | 40mmx40mm 50mmx50mm 63mmx63mm |
Beam thickness | 3mm-6mm |
I-beam column size | 100mmx55mm 100mmx68mm 150mmx75mm |
Square pipe size | 50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm |
Square pipe thickness | 1.5mm-4mm |
Connector size | 30mmx150mmx7mm 40mmx130mmx7mm |
Connect anti-theft bolts | M8 xNo.34 for pale fixing M12 xNo.4 for rail fixing |
