Oct . 10, 2024 23:32 Back to list

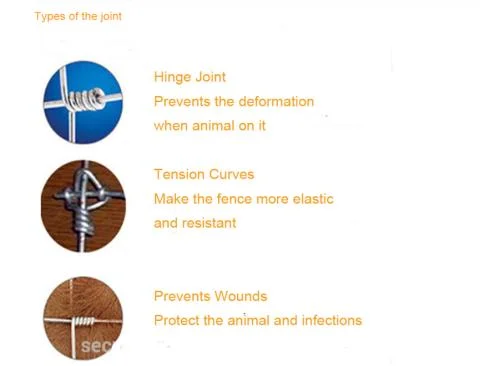

High Tensile Goat / Cattle Fence/Hinge Joint/Fixe Knot Field Fence/Farm Wire Fence /Farm Fence/Livestock /Deer/Sheep Fence/Stiff Stay Fencing

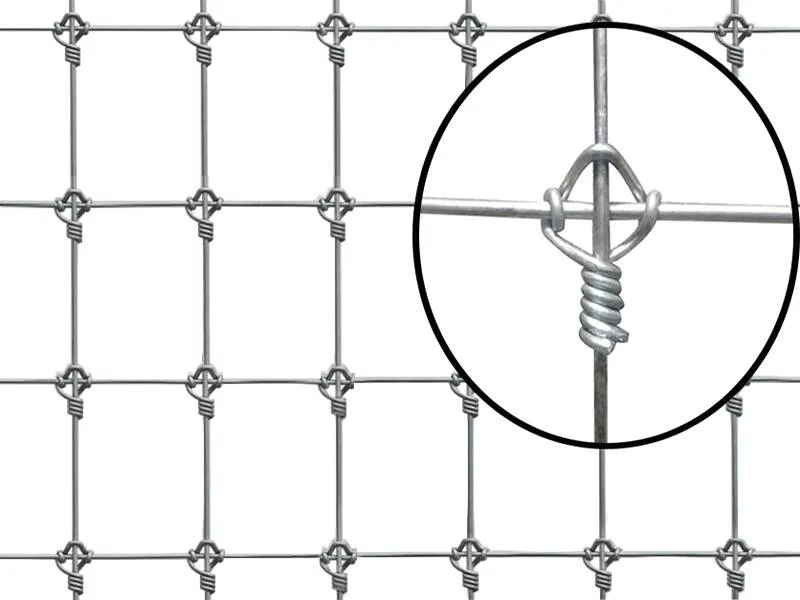

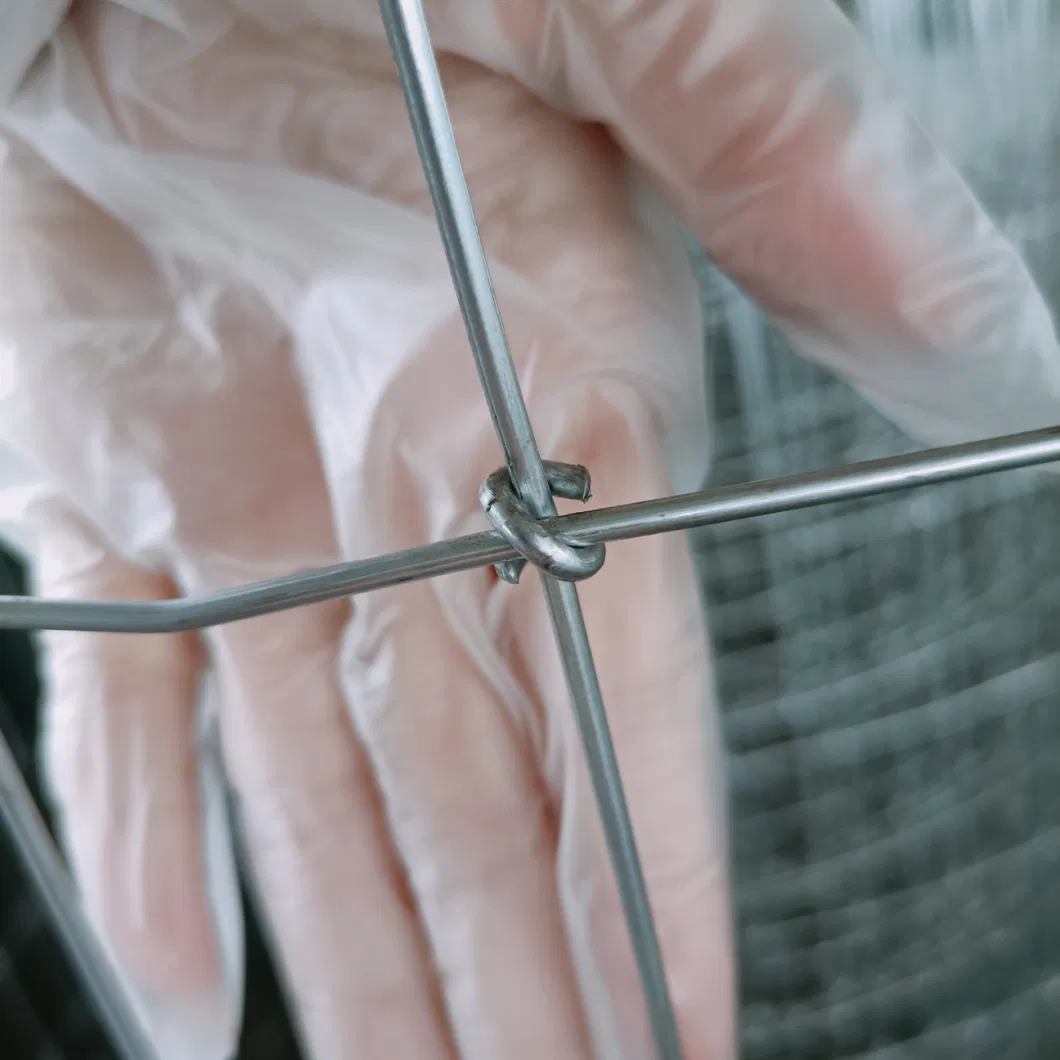

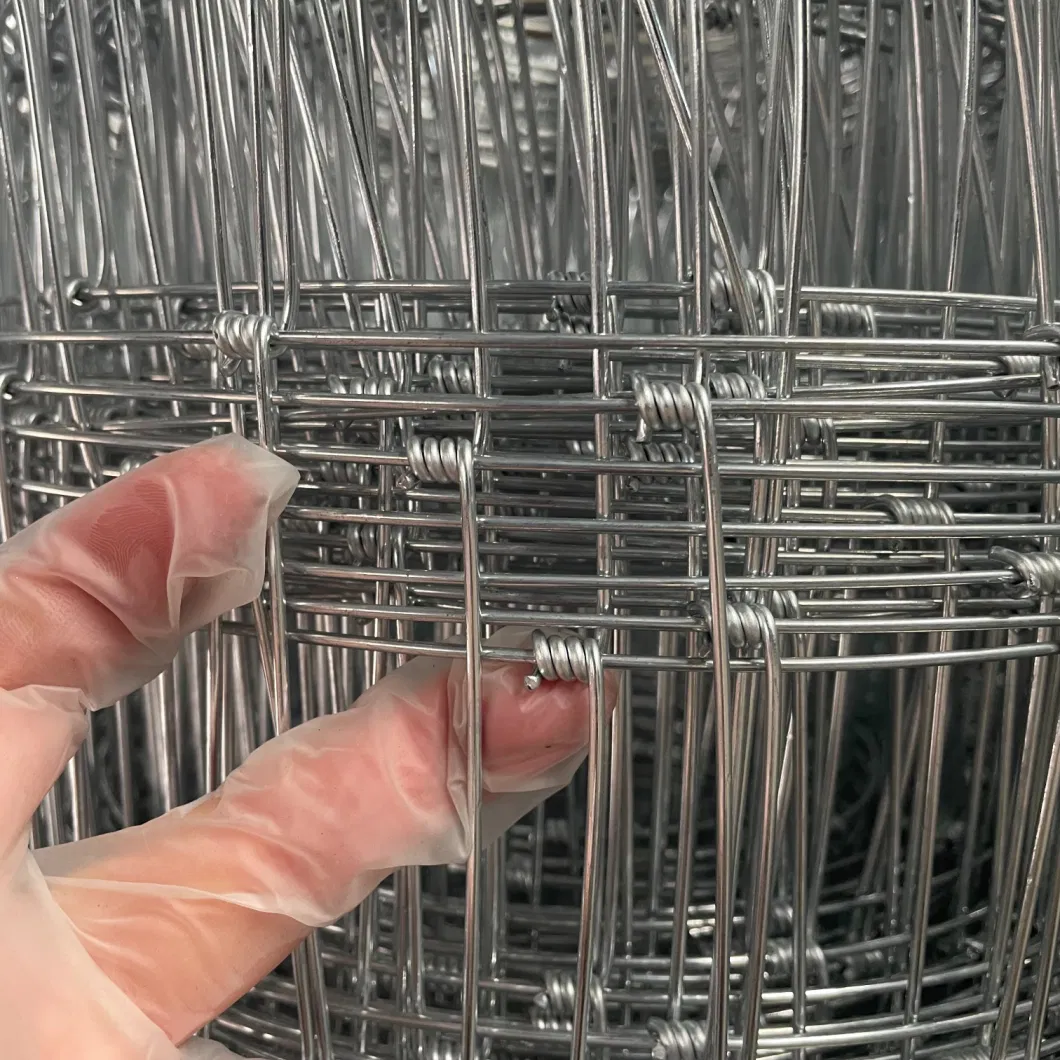

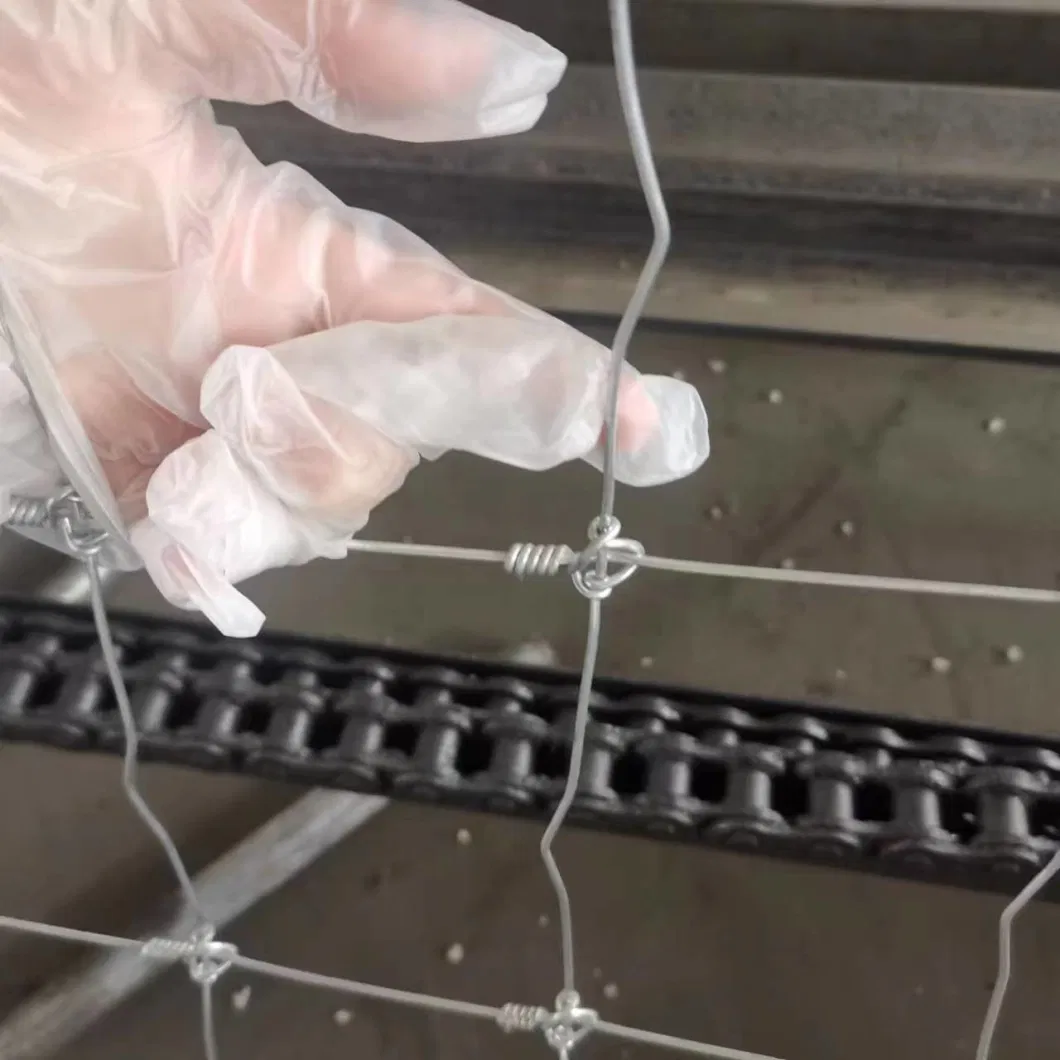

Field fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.Using high strength galvanized steel wire, with smooth net surface, uniform mesh, toughness, high strength, novel structure,strong precision, not close, anti-slip, compression, earthquake resistance, corrosion resistance and other characteristics.
| PRODUCT NAME | Zinc coated fixed knot woven wire fence deer fence |
| MATERIAL | Galvanized metal wire |
| WIRE DIAMETER | 2.0mm(stock), others for production wire gauge:1.9-3.5mm edge wire diameter:1.8-2.5mm horizontal wire diameter:2.0-3.5mm |
| HOLE SIZE | vertical hole size:15cm(5-60cm) aperture:89-203mm |
| WIDTH | 0.85-2.4m 1m(in stock), others for production |
| LENGTH | 10-300m, 80m(stock), others for production |
| FEATURES | Stronger, less cost, long life and faster installation |

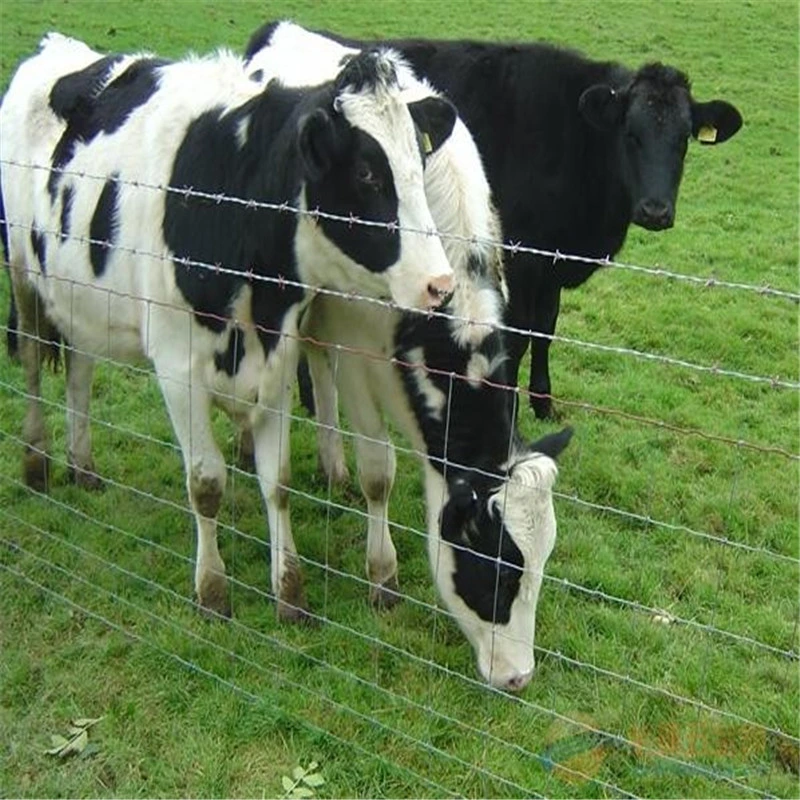

| APPLICATIONS | Livestock fence, pasture, wildlife park, zoo |
SPECIFICATION
| NO. | Specification | Gross Weight ( kg) | Set and bottom wire Dia.(mm) | In wire Dia. (mm) | Volume dia. (mm) | ||
| Type | Specification | ||||||
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 | 280 | |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 2 | 280 | |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 2 | 280 | |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 | 280 | |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 | 280 | |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 | 280 | |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 | 280 | |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 | 280 | |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 | 280 | |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 | 280 | |

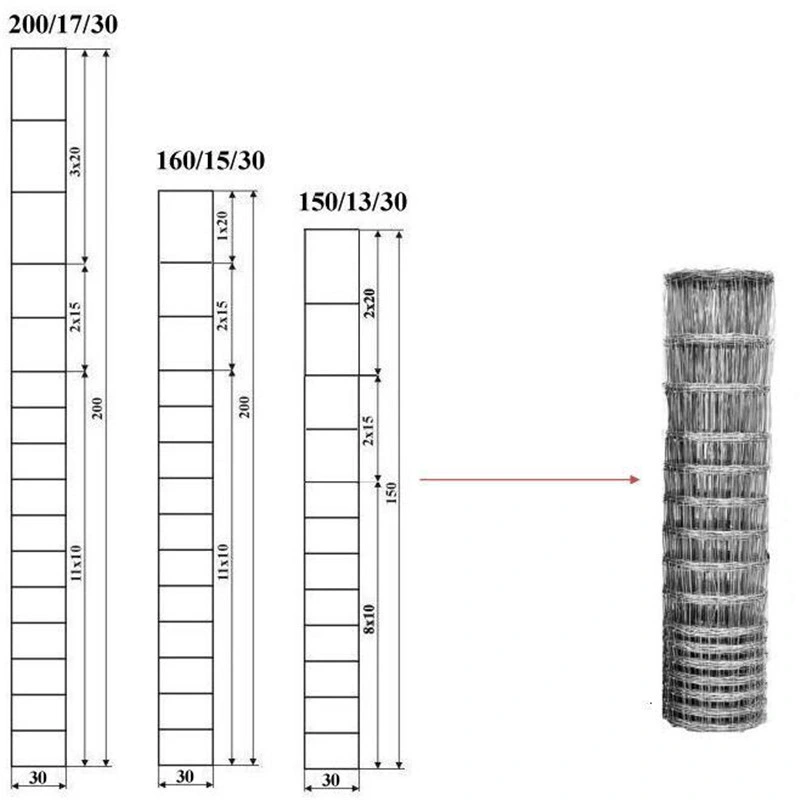

| Type | Roll height | Number of | Distance between | Wire Ø | Roll length |
| (cm) | horizontal wires | vertical wires (cm) | (mm) | (m) | |
| 1960-6-15 | 60 | 6 | 15 | 1.9-3.5 | 50/100 |
| 1960-6-15 | 80 | 6 | 15 | 1.9-3.5 | 50/100 |
| 1980-8-15 | 80 | 8 | 15 | 1.9-3.5 | 50/100 |
| 1995-9-15 | 95 | 9 | 15 | 1.9-3.5 | 50/100 |
| 100/8/15 | 100 | 8 | 15 | 1.9-3.5 | 50/100 |
| 100/16/15 | 100 | 16 | 15 | 1.9-3.5 | 50/100 |
| 120/15/15 | 120 | 15 | 15 | 1.9-3.5 | 50/100 |
| 130/11/15 | 130 | 11 | 15 | 1.9-3.5 | 50/100 |
| 130/18/15 | 130 | 18 | 15 | 1.9-3.5 | 50/100 |
| 149/19/15 | 149 | 19 | 15 | 1.9-3.5 | 50/100 |
| 200/22/15 | 200 | 22 | 15 | 1.9-3.5 | 50/100 |

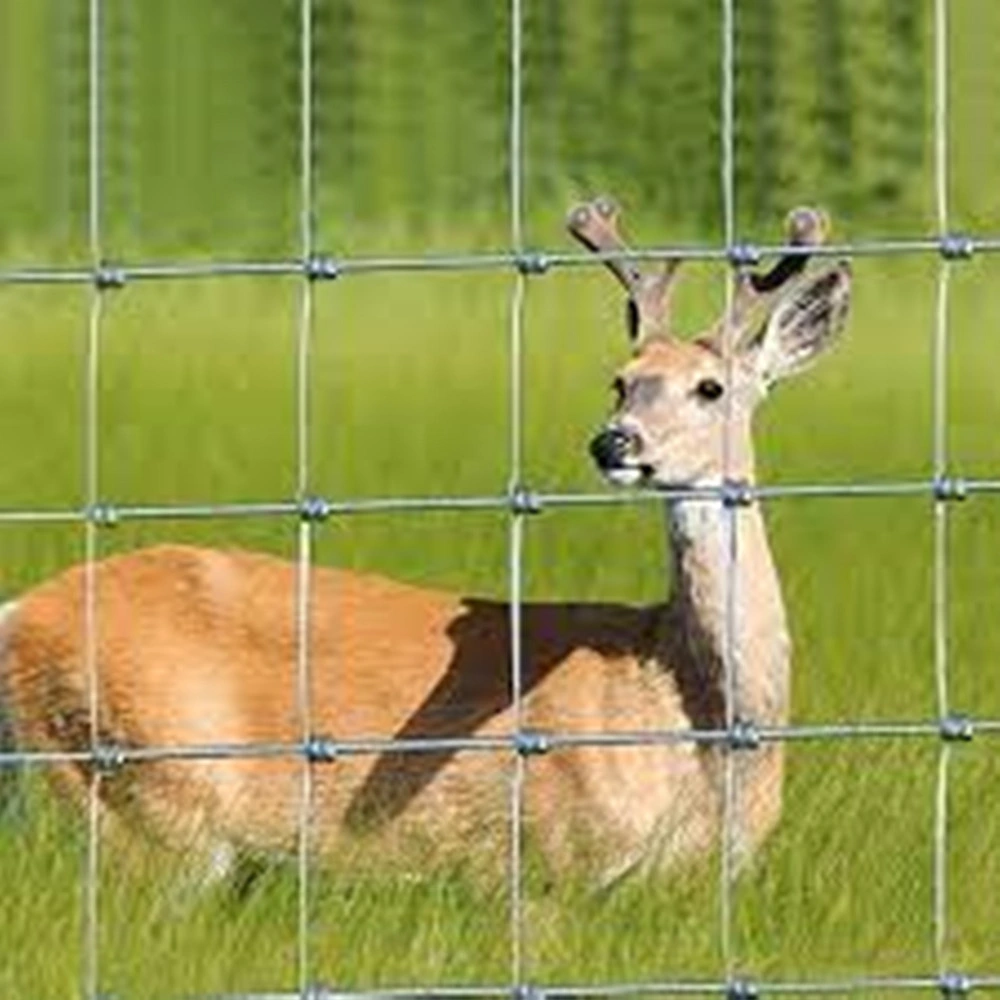

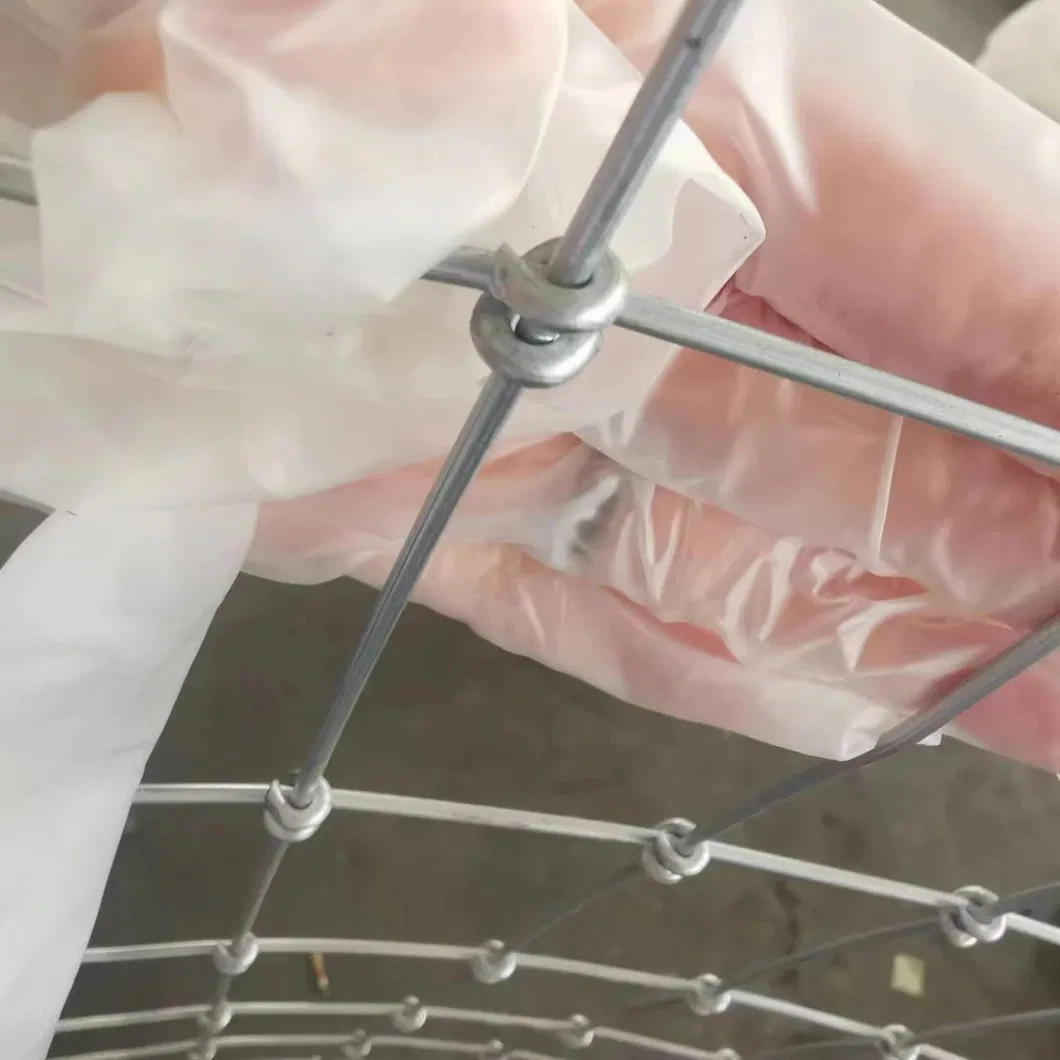

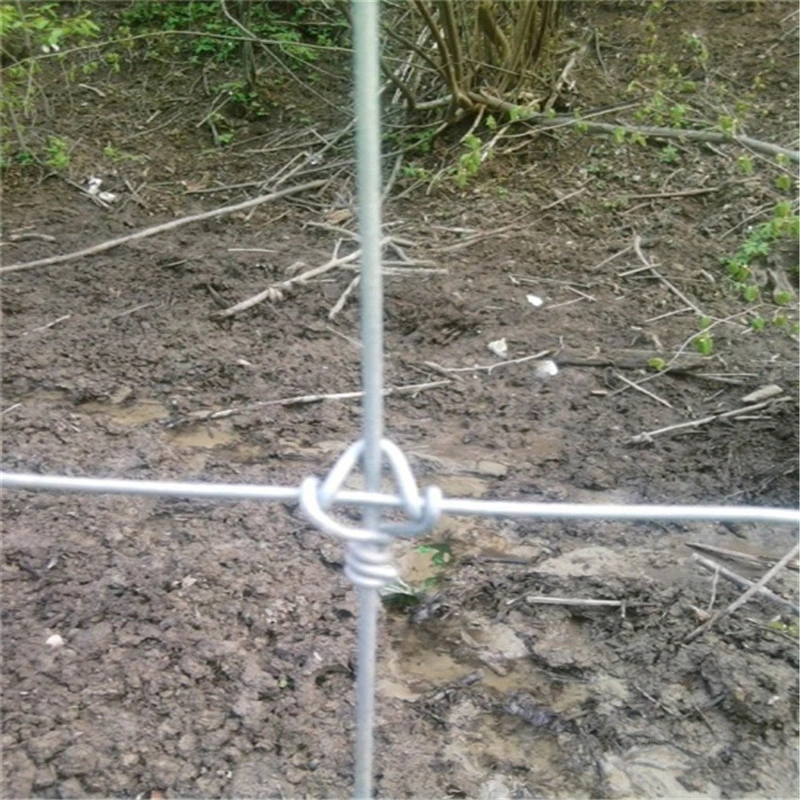

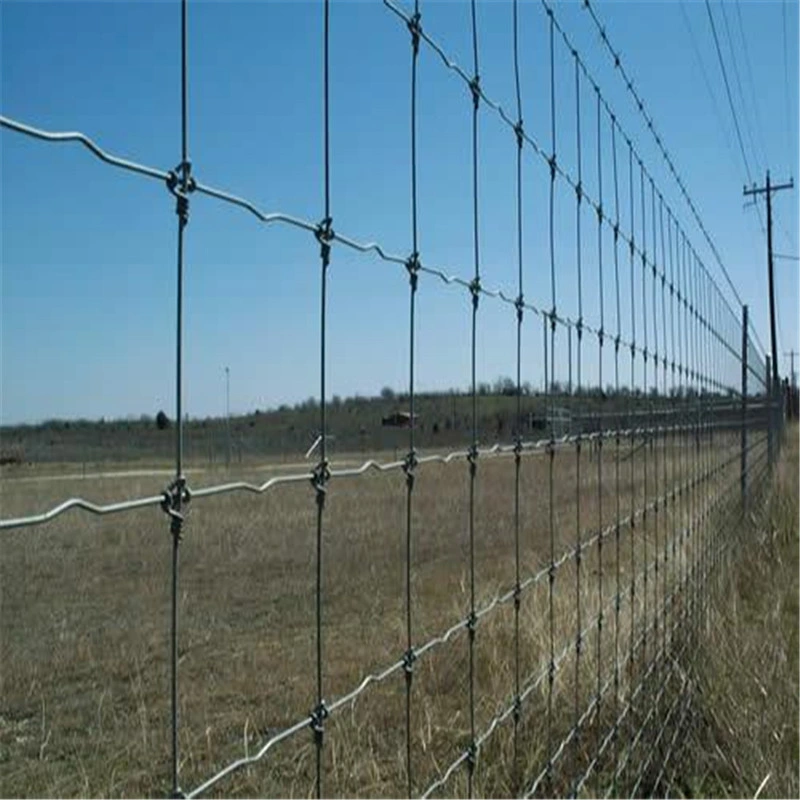

High Tensile Field Fences are made to with stand the hardness of the grassland climate,which are made of graduated steel wire mesh knotted by special machines popularly used in fields and grassland for breeding of deer, cattle and other animals. Our fence products enjoy innovative design, firm structure, flat surface, uniform opening, good flexibility and long service life. The steel wire used in producing field fence offers high strength against the violent clashing of horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
1. Is your samples free?
Yes, we can provide free samples to my clients.
2. How many days will the samples be finished?
Generally the samples will be sent immediately by the air express in 2~3 days if the goods are in stock.
3. And how about the mass production?
Normally within 20-25 days according to your order.
4. Are you a manufacture?
Yes, we have been in providing the products in this field for 18 years.
5. Is customized availabls?
Yes, we can OEM according to your detailed drawings.
